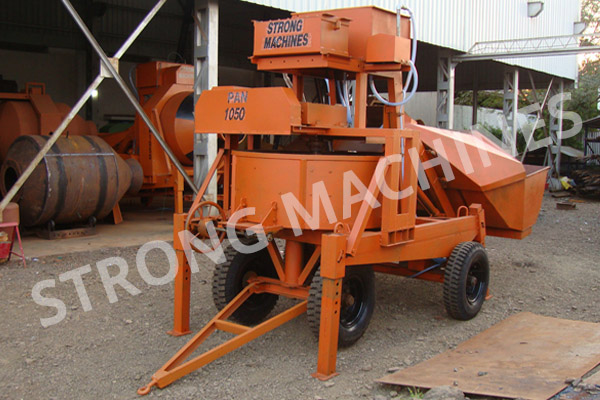

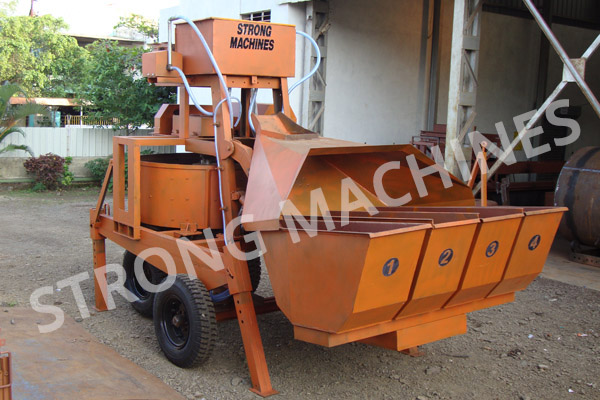

Pan Mixer Concrete Mini Batching Plant (CCP)

Pan Mixer Concrete Mini Batching Plant (CCP)

Since 1987 we have shipped thousands of STRONG mixers, many with optional equipment, to producers of concrete products around the world. It combines the advantages of simplicity, ruggedness and exceptional service life. That translates into excellent value. Continuous development and enhancement has made it a fully mature machine, ideally suited for a wide range of mixing tasks.

Strong Machines make PM series is widely used on various construction sites as it’s a compact batching machine having features like separate weighing of material, auto water dozing system, admixture dozing and printing facility and it comes on 4 pneumatic tyres with tow bar facility which makes it easy to move and shift on site.



PM 550

PM 800

PM 1050

PM 1400

 Output capacity/ Hour
8 – 10 M³
10 -12 M³
12-15 M³
15-17 M³
 Mixer type
Reversible drum type mixer
 Mixing and discharge of concrete
Forward rotation of the drum mix the material and reverse rotation of  the drum discharge the concrete
 Main drive of the mixer
10 HP
10 HP
15 HP
20 HP
 Material weighing system
Digital load cell based weighing of the material in each bin
 Water tank capacity
150 litre
200 litre
250 litre
300 litre
 Water feeding system
Flow rate based accurate water feeding system
 Pneumatic tyres
4 no
4 no
4 no
4 no
 Hydraulic tank capacity
40 litre
40 litre
60 litre
90 litre
 Centralized lubrication system
Inbuilt centralized lubrication system
 Tow bar facility
 Control panel
Micro processor based control panel
 Total connected power
12.5 HP
12.5 HP
17.5 HP
23 HP
 Suggested DG set
25 KVA
25 KVA
30 KVA
40 KVA


  • Printing facility
  • Auto Admixture dozing system
  • Single/two/three bin system
